HAYTER 16 ??????

elliesgramps

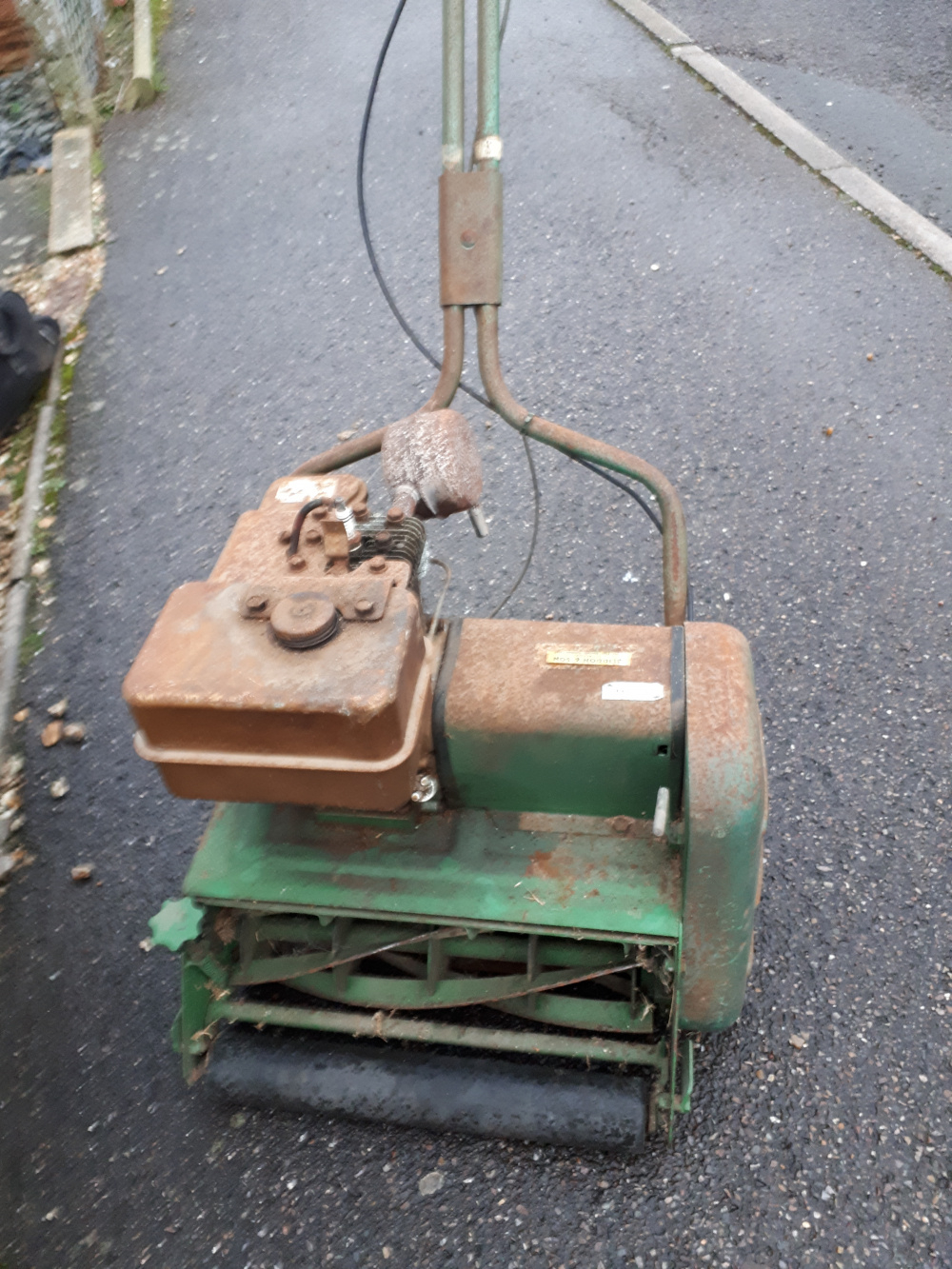

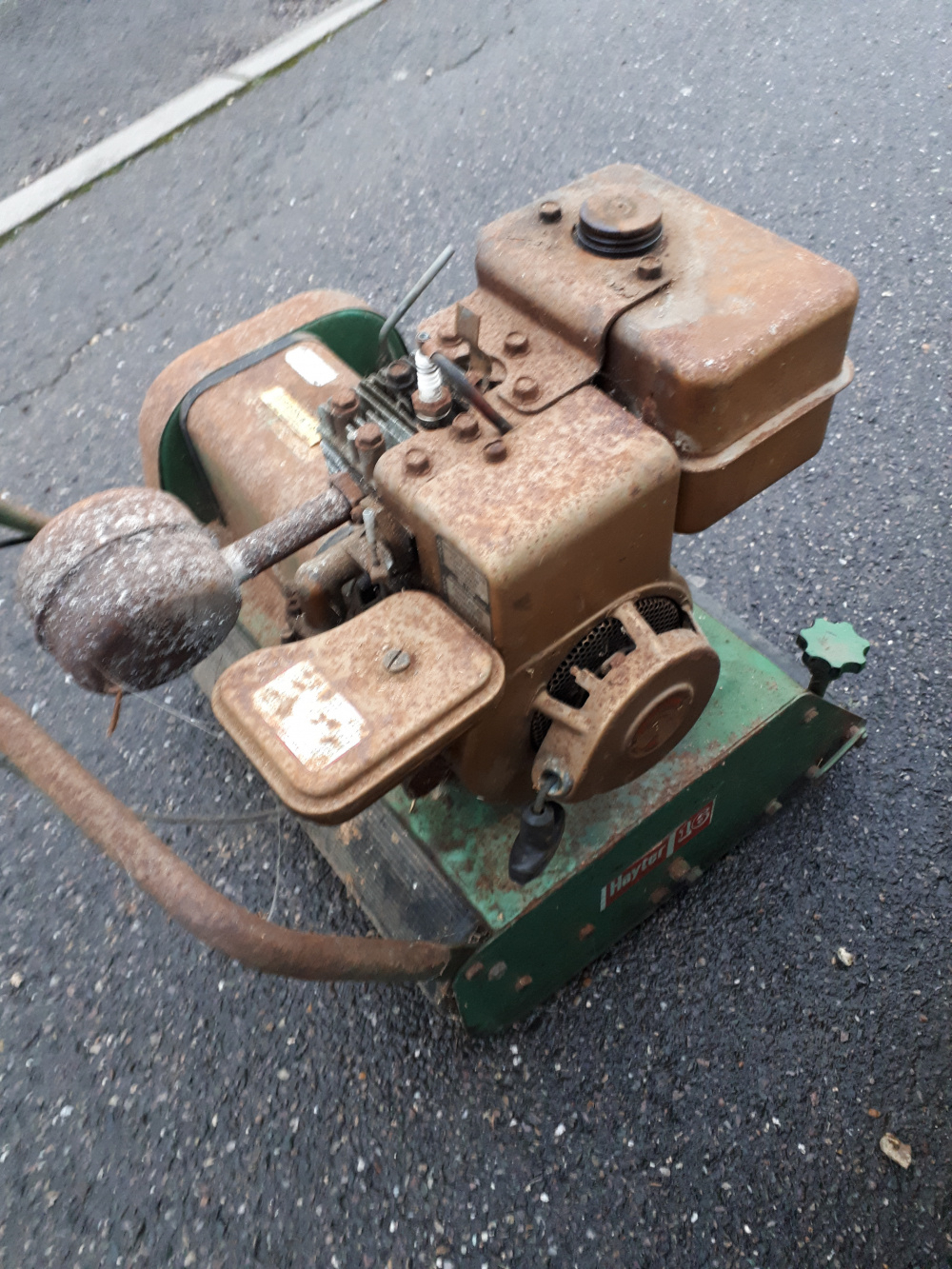

Hi all, just picked up a beast to restore. But not sure of correct model. The owner says and the decal say its a Hayter 16. I cat find any info or exploded drawings. Can anybody help please?

wild edges

There are some old Haynes manuals for lawnmowers but I don't know what would cover this one https://www.ebay.co.uk/itm/ATCO-FLYMO-HAYTER-HONDA-MOUNTFIELD-VICTA-WEBB-PETROL-LAWNMOWER-WORKSHOP-MANUAL/233472461491?hash=item365c0b0ab3:g:7SUAAOSwxgBdTY3k

elliesgramps

But is it a Hayter 16 because I'm wandering If 16 refers to cassette width.

wild edges

Looks similar to the 1960s Ambassador 16/20. I imagine the blade would be 16" wide if you measure it.

https://www.hayter.co.uk/why-hayter/our-heritage

http://https//www.abebooks.co.uk/Hayter-Instruction-Books-Ambassador-Hayterette-Harrier/13346334202/bd

elliesgramps

Thanks, wild edges but I can't connect to second link

wild edges

Damn. It's this seller on Abe Books https://www.abebooks.co.uk/berwyn-books-buckley/53778991/sf  try searching for Hayter under keywords in their shop. Not sure it's what you want but you never know.

On the Hayter website click the 1960s section and it looks like your mower on the right.

elliesgramps

Linked to that one ok thanks
